Husqvarna 565 Chainsaw-1
Husqvarna 565 Chainsaw-2
Husqvarna 565 Chainsaw-3

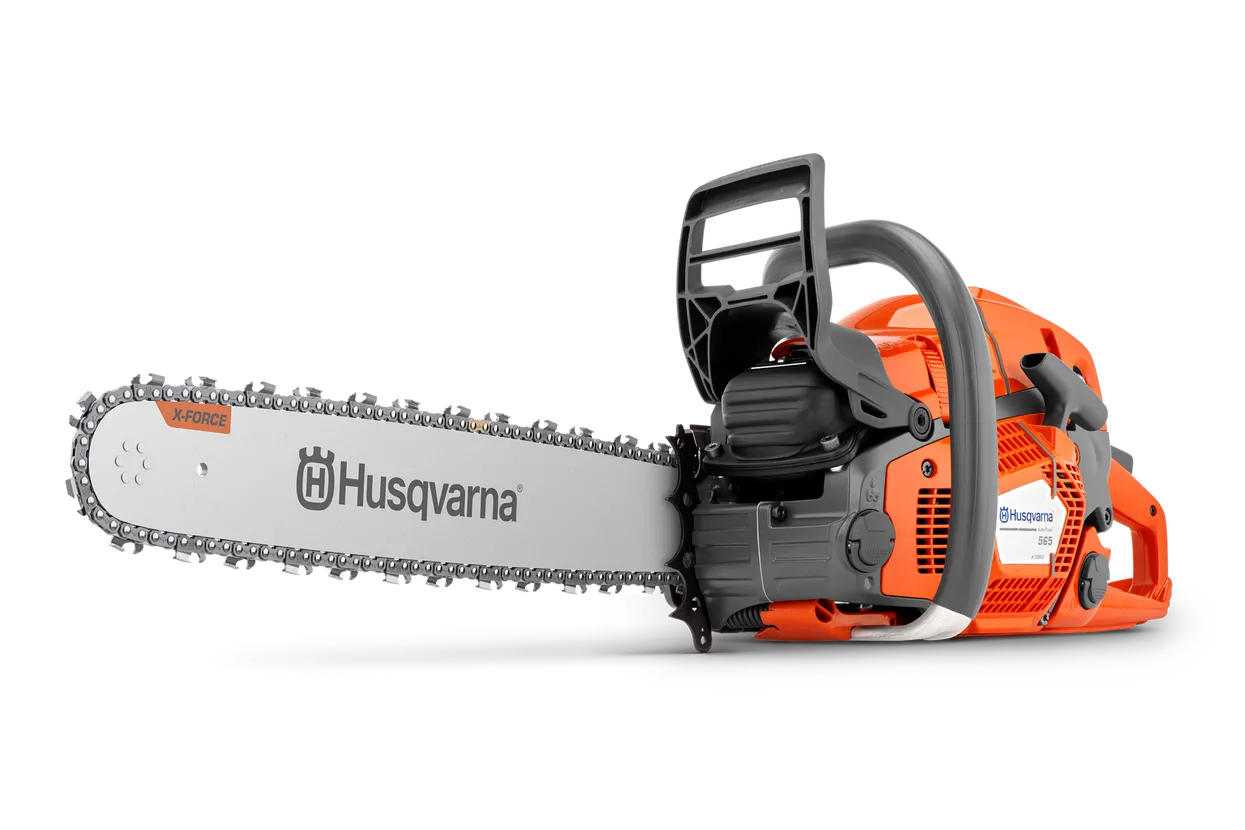

Husqvarna 565 Chainsaw

$1,069.99

Shipping calculated at checkout

Husqvarna SKU: 966 73 39‑06 Barcode: 966 73 39‑06

Engine
20" RSN 3/8" 1,3 mm C83
SKU: 966 73 39‑06
20" RSN 3/8" 1,5 mm C85
SKU: 966 73 39‑07
24" RSN 3/8" 1,3 mm C83
SKU: 966 73 39‑08
24" RSN 3/8" 1,5 mm C85
SKU: 966 73 39‑09
28" RSN 3/8" 1,3 mm C83
SKU: 966 73 39‑10
28" RSN 3/8" 1,5 mm C85
SKU: 966 73 39‑11
Chain speed at max power 67.9 fts 67.9 fts 67.9 fts 67.9 fts 67.9 fts 67.9 fts
Cylinder displacement 70.6 cm³ 70.6 cm³ 70.6 cm³ 70.6 cm³ 70.6 cm³ 70.6 cm³
Output shaft power1
5 hp 5 hp 5 hp 5 hp 5 hp 5 hp
Torque, max. 4.2 Nm 4.2 Nm 4.2 Nm 4.2 Nm 4.2 Nm 4.2 Nm
Torque, max. at rpm 6,900 rpm 6,900 rpm 6,900 rpm 6,900 rpm 6,900 rpm 6,900 rpm
Clutch engagement speed (±120) 3,800 rpm 3,800 rpm 3,800 rpm 3,800 rpm 3,800 rpm 3,800 rpm
Electrode gap 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in
Idling speed 2,700 rpm 2,700 rpm 2,700 rpm 2,700 rpm 2,700 rpm 2,700 rpm
Ignition module air gap 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in
Maximum power speed 9,300 rpm 9,300 rpm 9,300 rpm 9,300 rpm 9,300 rpm 9,300 rpm
Oil pump type Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle
Spark Plug NGK BPMR7A NGK BPMR7A NGK BPMR7A NGK BPMR7A NGK BPMR7A NGK BPMR7A
Equipment
Recommended bar length, min 15 in 15 in 15 in 15 in 15 in 15 in
Pitch 3/8" 3/8" 3/8" 3/8" 3/8" 3/8"
Recommended bar length, max 28 in 28 in 28 in 28 in 28 in 28 in
Chain type C83 C85 C83 C85 C83 C85
Bar length 50 cm 50 cm 60 cm 60 cm 70 cm 70 cm
Bar length (inch) 20 in 20 in 24 in 24 in 28 in 28 in
Sprocket type Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7
Gauge .050" .058" .050" .058" .050" .058"
Dimensions
Weight (excl. cutting equipment) 14.3 lbs 14.3 lbs 14.3 lbs 14.3 lbs 14.3 lbs 14.3 lbs
Sound and noise
Sound pressure level at operators ear 105 dB(A) 105 dB(A) 105 dB(A) 105 dB(A) 105 dB(A) 105 dB(A)
Sound power level, guaranteed (LWA) 119 dB(A) 119 dB(A) 119 dB(A) 119 dB(A) 119 dB(A) 119 dB(A)
Sound power level, measured 117 dB(A) 117 dB(A) 117 dB(A) 117 dB(A) 117 dB(A) 117 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle 5.3 m/s² 5.3 m/s² 5.3 m/s² 5.3 m/s² 5.3 m/s² 5.3 m/s²
Equivalent vibration level (ahv, eq) front handle 5.2 m/s² 5.2 m/s² 5.2 m/s² 5.2 m/s² 5.2 m/s² 5.2 m/s²
Lubricant
Oil tank volume 0.7 US pint 0.7 US pint 0.7 US pint 0.7 US pint 0.7 US pint 0.7 US pint
Lubricant type (Engine) Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1
Emission
Exhaust emissions (CO₂ EU V)2
804 g/kWh 804 g/kWh 804 g/kWh 804 g/kWh 804 g/kWh 804 g/kWh

Available Now!
Bar length: 20 in. / 50 cm.

Add $300.00 more for FREE shipping!
