Description:

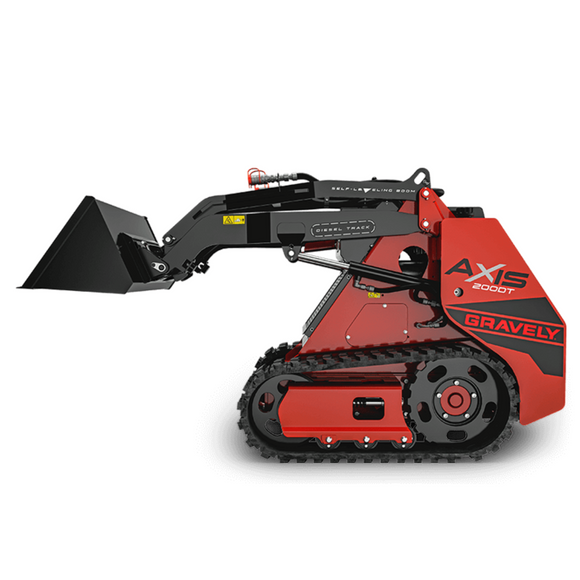

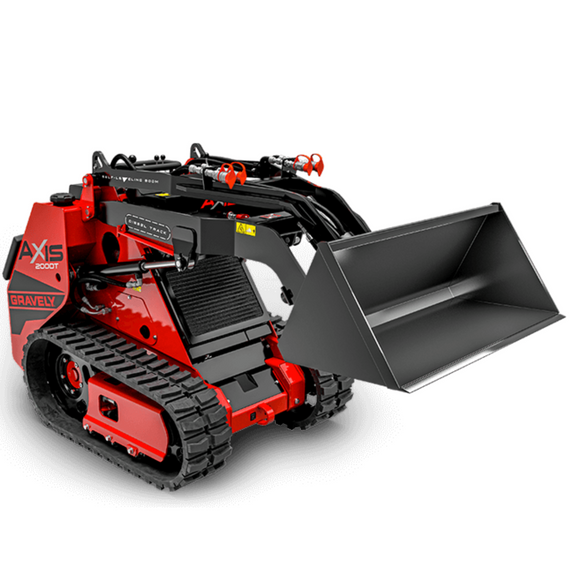

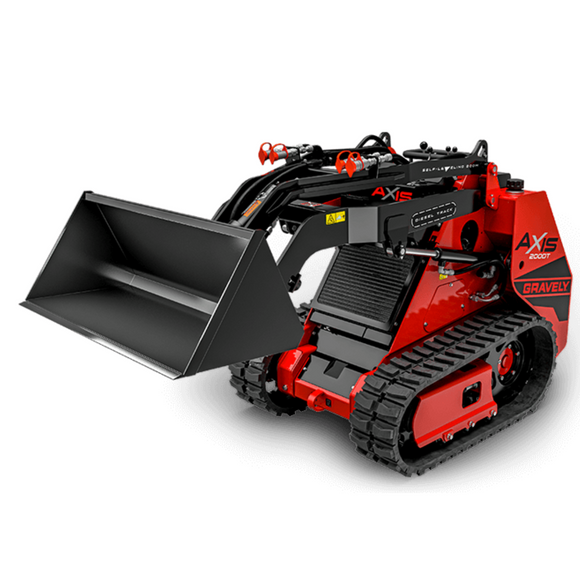

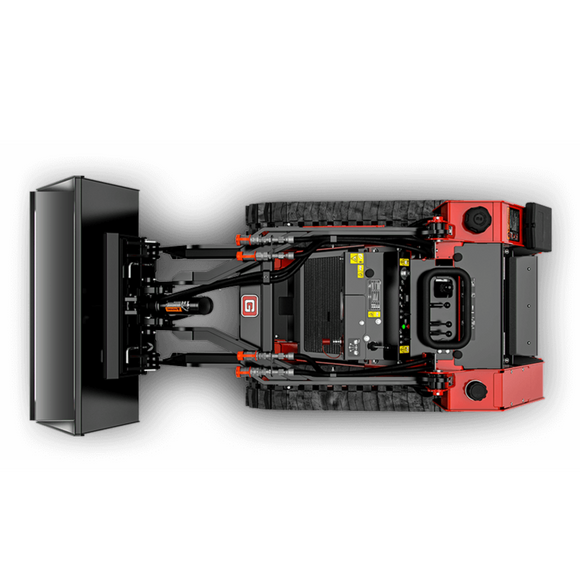

This 2,500lb track model multi-tool machine is powered by a durable Kubota D1105 25 HP diesel engine, running at a top speed of 3.5 MPH. With an overall operating height of 85in, the AXIS 200DT has the ability to dump at a height of 48.8in while at a 45-degree angle. The 497lbs of lifting capacity with a tipping capacity of 1,420lbs, allows this compact utility loader to maximize your crew’s time in the field when you want to get the job done efficiently while putting the power where you need it.

Specifications:

Power Train

• Engine: Kubota® D1105-E4B
• Horsepower: 25 HP
• Fuel Capacity: 10 gal / 37.9 ltr
• Driver Position: Stand
• Ground Speed (Forward): 3.5 mph / 5.6 kph
• Front Wheel Track: 9.1 in
• Rear Wheel Track: 9.1 in / 23.1 cm

Payload

• Tipping Capacity: 1397 lbs / 3080.4 kg
• Max Lift Capacity: 489 lbs / 1078.2 kg

Dimensions

• Weight (Assembled): 2525 lbs
• Length: 63.3 in / 160.8 cm
• Width: 41.2 in / 104.6 cm
