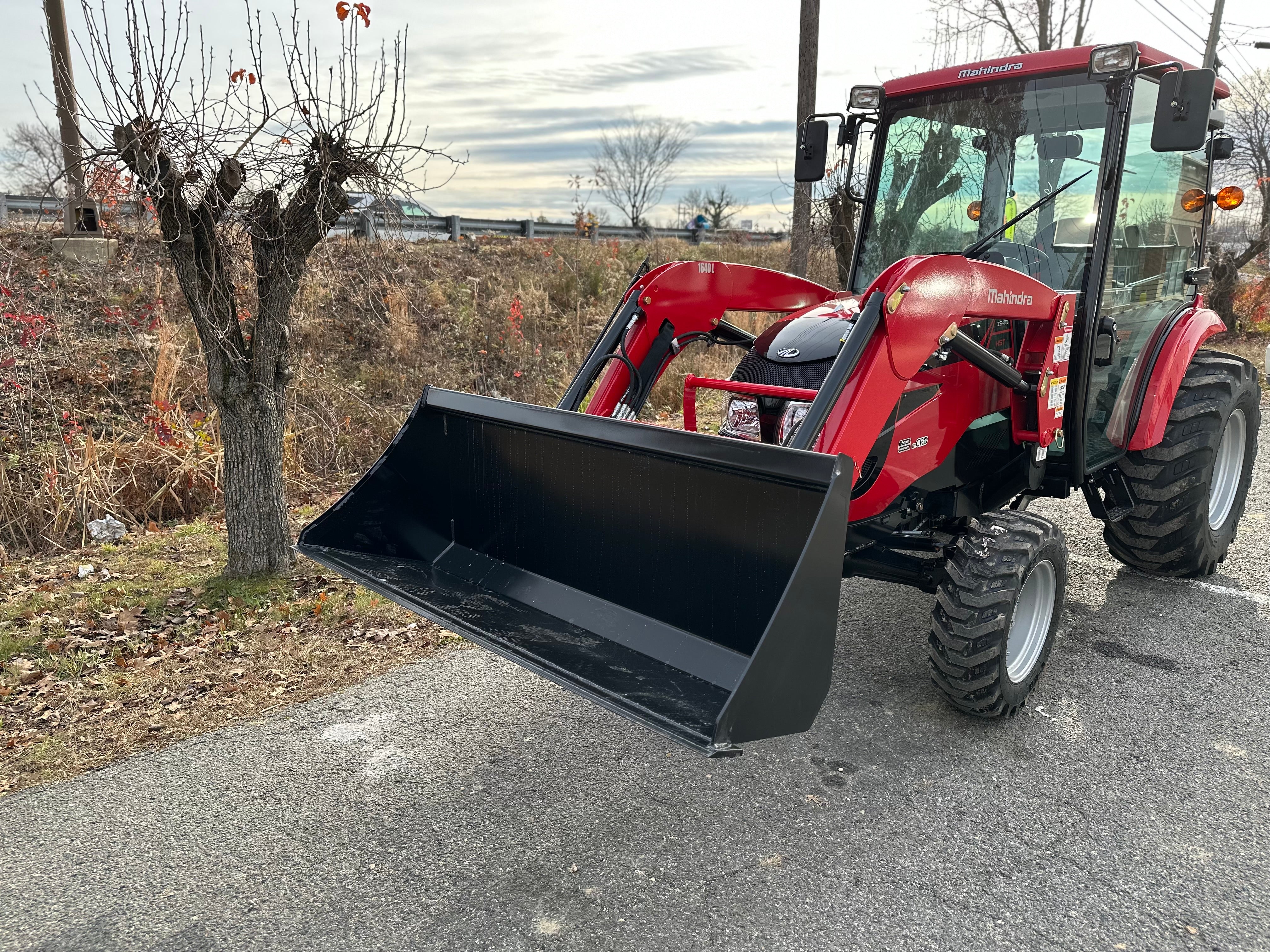

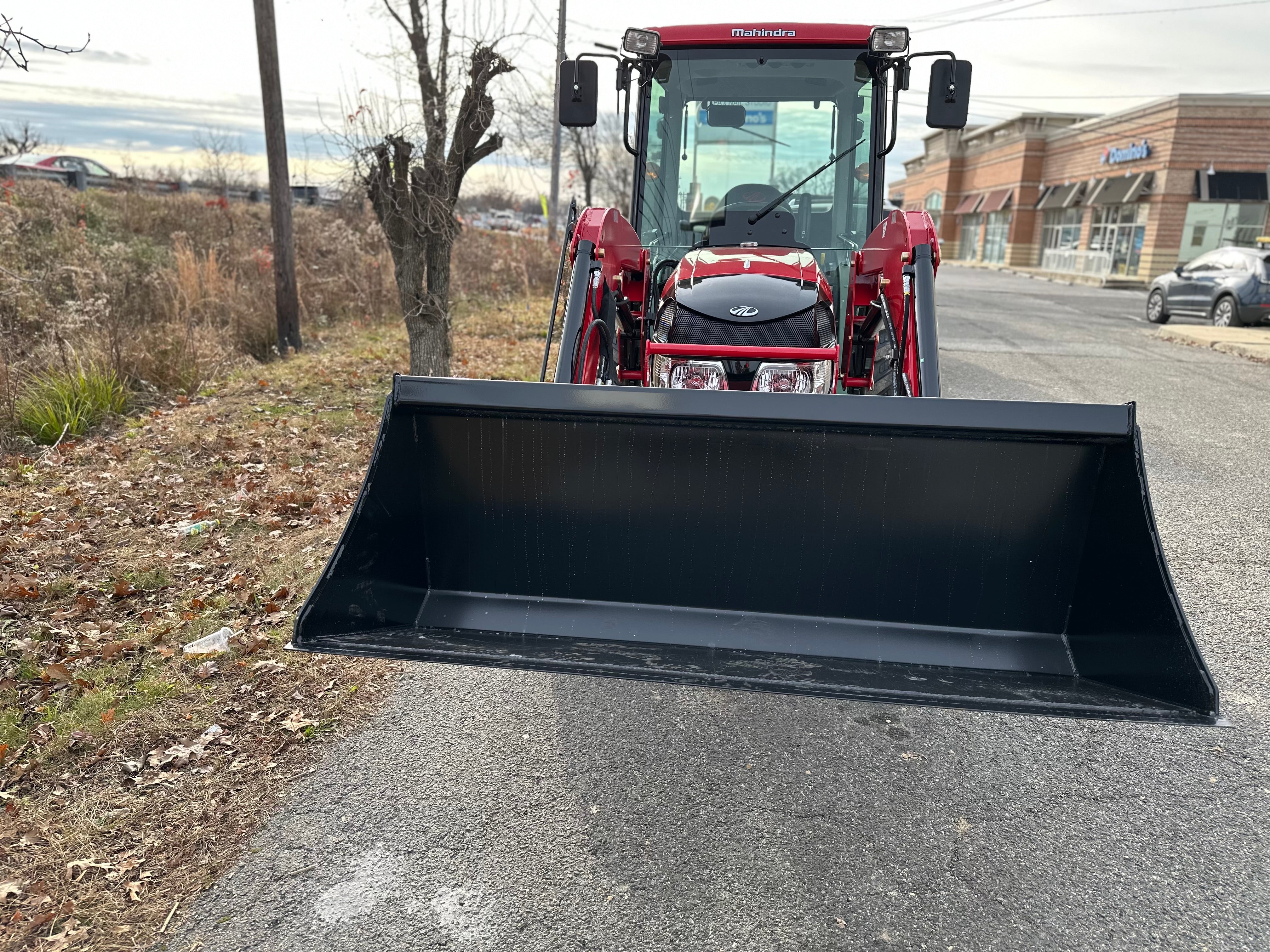

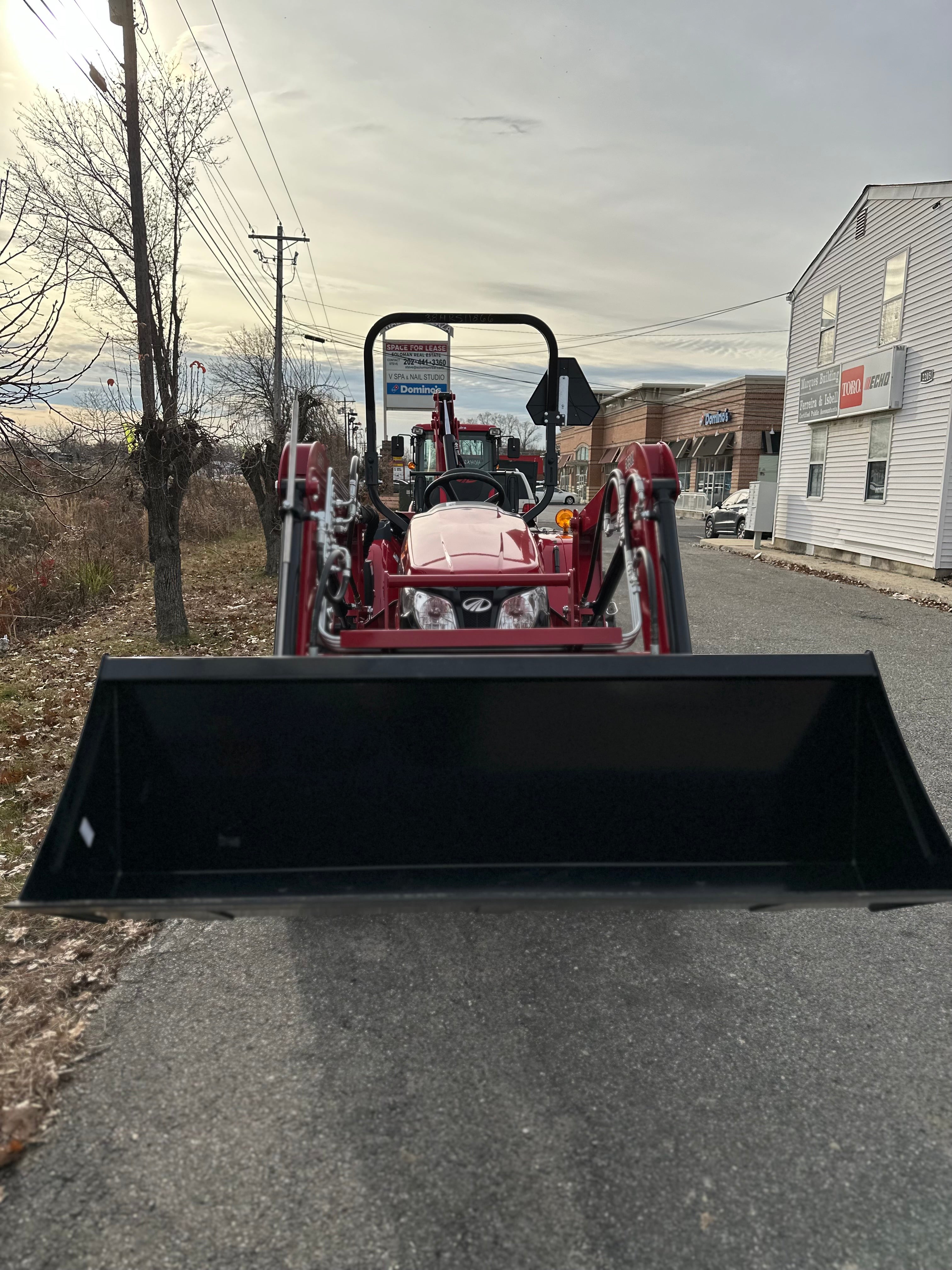

1640 Mahindra Tractor 4WD CAB HST with Ind Tires, Loader-1
1640 Mahindra Tractor 4WD CAB HST with Ind Tires, Loader-2
1640 Mahindra Tractor 4WD CAB HST with Ind Tires, Loader-3
1640 Mahindra Tractor 4WD CAB HST with Ind Tires, Loader-4
1640 Mahindra Tractor 4WD CAB HST with Ind Tires, Loader-5
1640 Mahindra Tractor 4WD CAB HST with Ind Tires, Loader-6
1640 Mahindra Tractor 4WD CAB HST with Ind Tires, Loader-7

1640 Mahindra Tractor 4WD CAB HST with Ind Tires, Loader

$32,920.00 $41,646.00 Save $8,726

Shipping calculated at checkout

Mahindra

Mahindra Tractor Serial Number: 40HX221230633

Specifications

ENGINE:
Four stroke, direct injection, water cooled diesel, comply w/ US TIER-4 final norms
Type: Naturally aspirated direct injection diesel
Engine HP [kW] @ RPM: 38.7 [28.9] @ 2400
Displacement (in3): 167
Number of Cylinders: 4
Firing Order: 1-3-4-2
Bore & Stroke (in): 88.9 mm (3.5 in.) * 110 mm (4.33 in.)
Compression Ratio: 18.7:1
Low Idle RPM: 970-1030
High Idle RPM: 2570-2630
Injection Pump: BOSCH CB18-2L OHWCW
Accelerator : Hand lever
Muffler: Under hood muffler & downswept exhaust
Air Cleaner: Dry Type Air Cleaning System with Double Filter
Fuel: Ultra Low Sulfur Diesel
Fuel Tank gal (L): 7.7 (29)

POWER TAKE OFF:
Type: Live
PTO Operation: Clockwise from rear of tractor
Rear PTO RPM: 540 @ 2376
Mid PTO RPM: 2000 (Opt.) @ 2526
PTO HP [kW]: 27.7 (20.6)

DASH INSTRUMENTS:
Tachometer & Hour Meter
Fuel Gauge
Temperature Gauge
Indicators for Warning Messages
4WD Drive Lamp

SAFETY EQUIPMENT:
Foldable ROPS w/ retractable Seat Belt
Safety Start Switches
Turn Signals/ Hazard Light
Mechanical Wet Disc Brakes
Electric Key Shut Off
Parking Brake Indicator on Dash
Water Temperature Gauge
DRIVE TRAIN:
Transmission: HST - 3 Ranges
Number of Speeds: Infinite
Clutch: Dry-Single
Brakes: Wet Disc

HYDRAULICS:
Type: Open Center
Steering Pump Output gpm (L/min): 3.4 (12.8)
Implement Pump Output gpm (L/min): 7.7 (29)
Maximum Total Flow gpm (L/min): 11.4 (41.8)
3-Point Hitch: CAT I with Telescoping Stabilizers & Flex Links
Lift Capacity lb (kg): 2646 (1200)
Optional Fitments: One valve optional
Working Pressure (psi): 2205

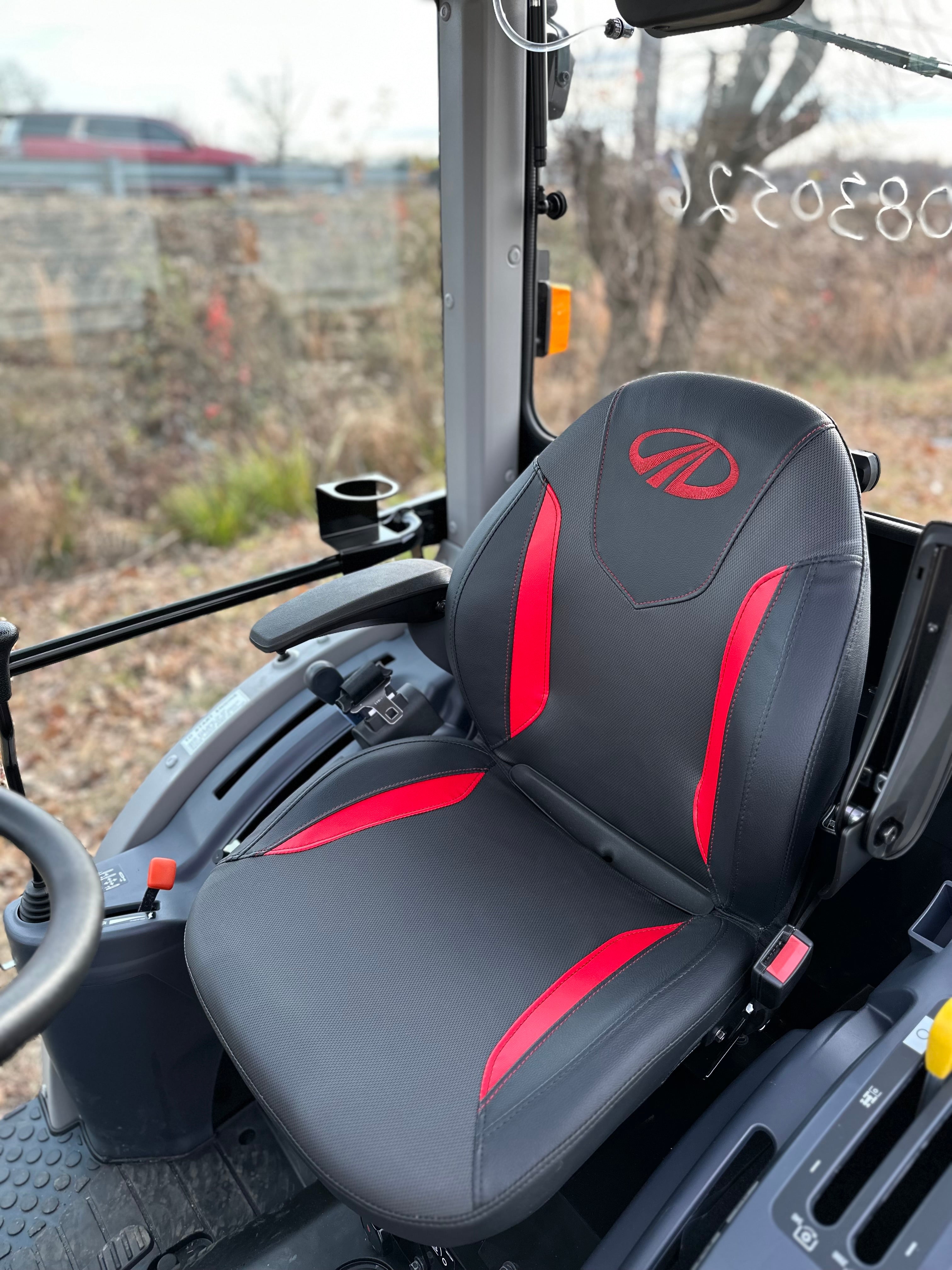

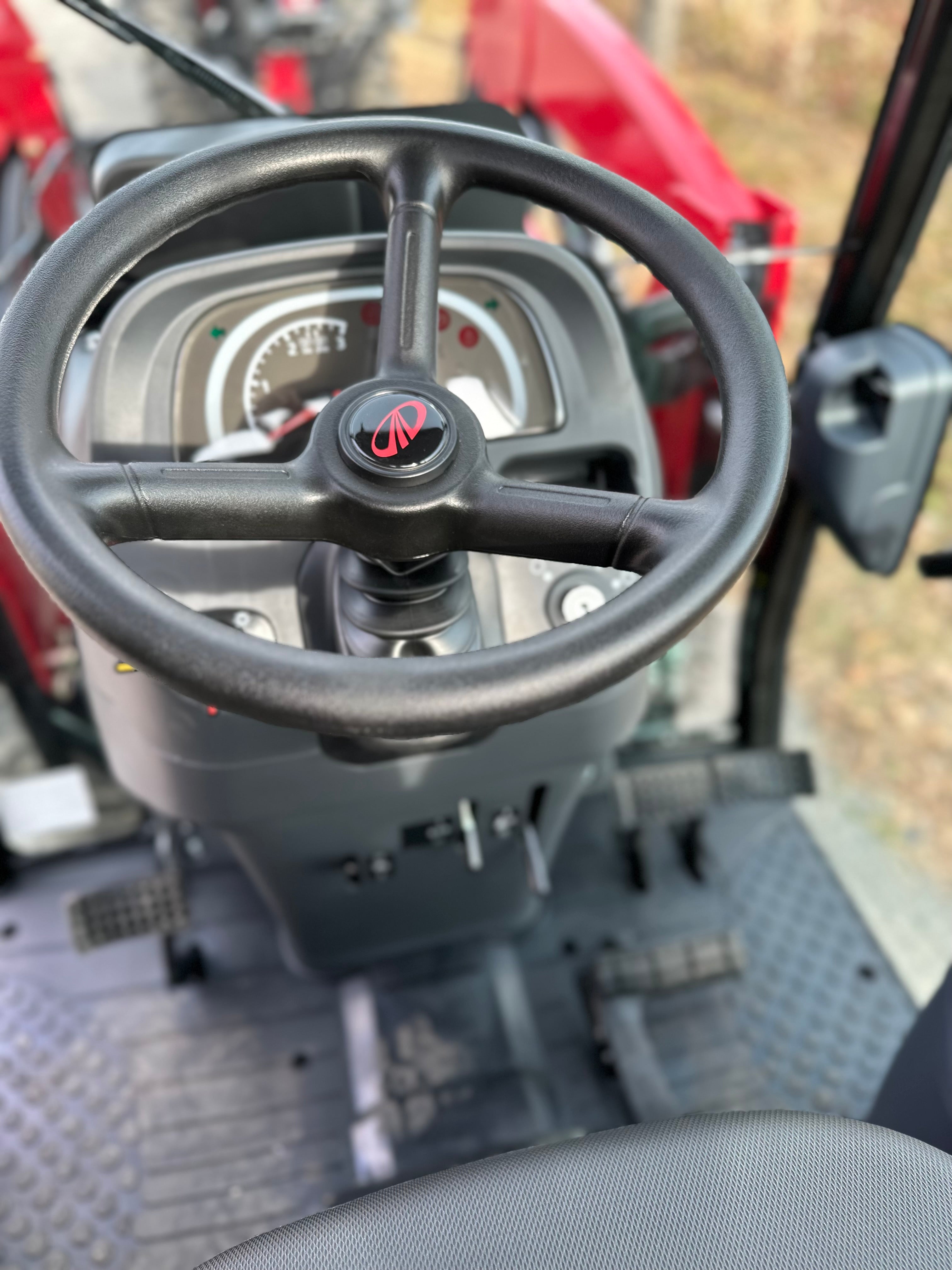

OPERATOR STATION:
Cruise Control
Steel Front Foot Guard
Wide Platforms Steps
Color Coded Controls
Dome Light
Radio Ready
Front/ Rear Wipers
Two Work Lights F/ R
HVAC

FRONT AXLE:
Power Steering
Center Pivot, Reverse Eliot Type
Level Gears for Wider Steering
ELECTRICAL:
Battery: 12 V, 925 CCA
Alternator: 12 V, 90 A
Starter Capacity: 12 V, 2.2 kw with Solenoid Switch
Lights: Headlights, Tail Lights and Stop Lights
Gauges: Indicators for: Glow plug, Charge, Engine Oil Pressure
Switches: Safety start switches (Rnage lever, PTO lever, Clutch pedal)
Cold Temperature Starting Aid: Starter motor with pre-heater
Indicator Lights: 2 Rear signal lights

DIMENSIONS:
Tilt Steering: Hand lever controlled
Overall Length in (mm): 127.8 (3246)
Overall Width in (mm): 62 (1574)
Overall Height in (mm): 89.4 (2270)
Wheelbase in (mm): 76.9 (1953)
Minimum Ground Clearance in (mm): 12.8 (325)
Weight lb (kg): 3627 (1645)

WHEELS & TIRES:
AG [Front/Rear]: 7 x 16 / 11.2 x 24
IND [Front/Rear]: 28 x 8.5-15 / 43 x 16-20

CAPACITIES:
Fuel Tank gal. (L): 7.7 (29.1)
Cooling System gal. (L): 1.4 (5.2)
Engine Oil gal. (L): 1.6 (6)
TRANS & DIFF gal. (L): 8.7 (32.9)
Front Axle & Final Drive Case gal. (L): 1.2 (4.5)
