Specifications
| Air Filter | Standard Kawasaki Air Cleaner |
|---|---|
| Anti Scalp Wheels | 3 Standard |
| Armrests | Optional |
| Bagger Capacity | 4.9 bushels |
| Blade Tip Speed | 17,700 ft/min / 5,395 m/min |
| Box Dimensions | 82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
| Caster Tires | 12 in. x 6 in. - 5 in. (30.5 x 12.2 cm - 12.7 cm) Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | MyRIDE® Suspension System |
| Cooling System | Air Cooled |
| Crankshaft | 1" (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Cutter System | Steel Cutting Blade |
| Deck Design | 10-Gauge steel IrongForged® |
| Deck Material | 10 Gauge Steel |
| Deck Size | 54 in / 137 cm |
| Discharge Chute | Side |
| Drive System | Hydrostatic |
| Drive Tires | 20 in. x 10 in. - 8 in (51 cm x 26 cm - 20.3 cm) |
| Drive Type | Rear-Wheel Drive |

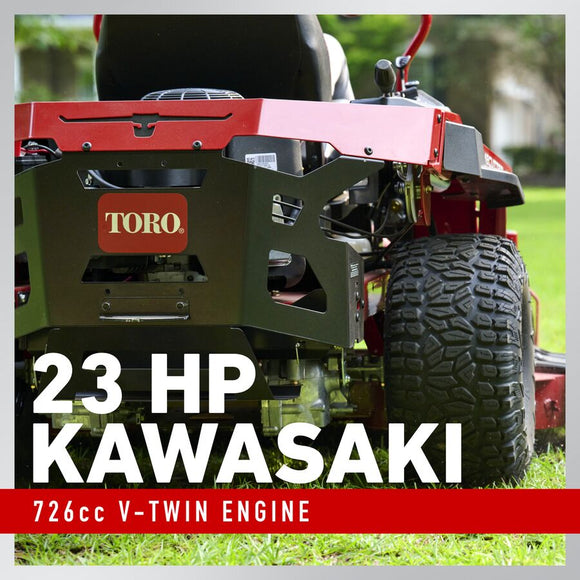

| Engine | 23 hp Kawasaki FR691V 726cc |
| Engine Brand | Kawasaki |
| Engine Displacement (cc) | 726 cc |
| Engine Horsepower | 23.0 hp |
| Engine Power (kW) | 17.2 kW |

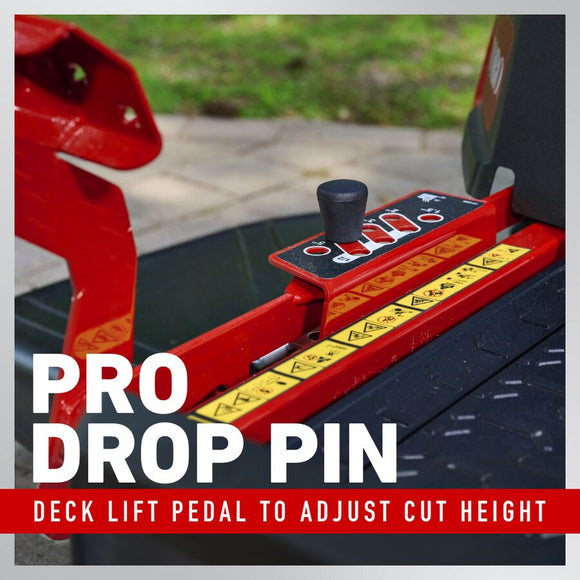

| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
| Forward Mowing Speed | Up to 7.0 mph / 11.2 kph |
| Frame | 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing |
| Fuel Capacity | 5 gal. / 18.9 L / 20 Qt. |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Height of Cut | 1.0 - 5.0 in. / 2.5 - 12.7 cm |
| Hitch Bracket | Standard |
| Hour Meter | Optional |
| Hydraulic Drive | Standard |
| Lighting | Optional |
| Number of Blades | 3 |
| Product Type | TimeCutter Max MyRide |
| Product Use | Residential |
| Recommended Oil Type | 10W-30 |
| Roll-Over Protection (ROPS) | Optional |
| Seat | 19" Gaming Style |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear |
| Transmission | Dual Hydrostatic HG-EZT2200 |
| Washout Port | Standard |
| Weight | 684 lbs / 310.3 kg |
