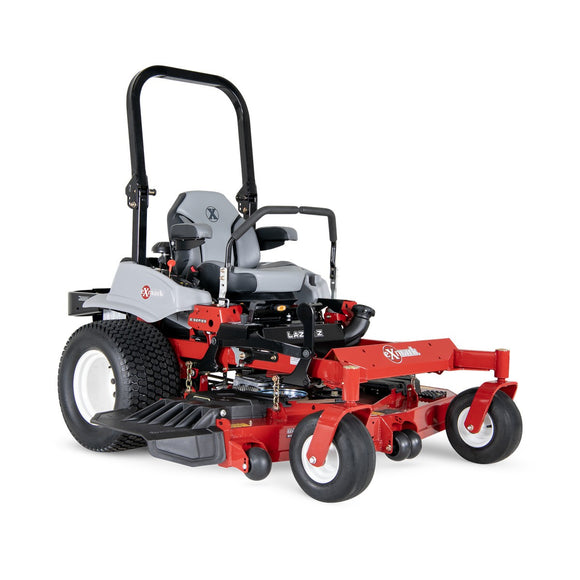

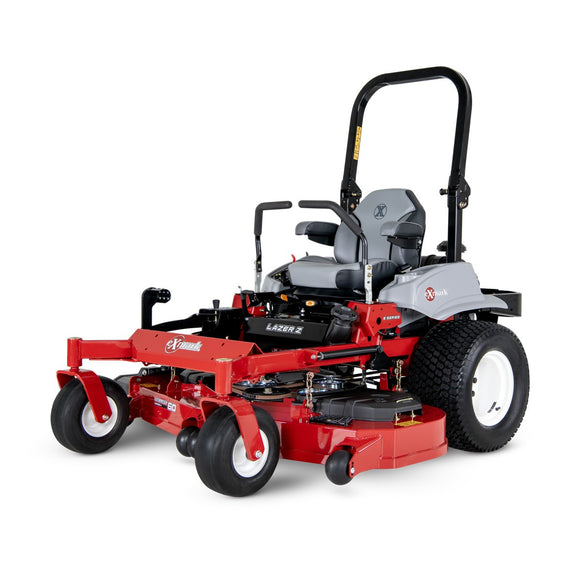

Exmark Lazer Z E-Series with 23.5HP* Kawasaki FX730V Engine and 48" UltraCut Series 4 (2-Blade) Deck (LRE730GKA48DA3)

$11,299.99

SKU: LRE730GKA48DA3

Sold Out

Description:

As the most affordable model in the Lazer Z line, the all-new 2025 Lazer Z E-Series delivers an unbeatable combination of cut quality, productivity, durability and value. Select from 48-, 52-, or 60-inch UltraCut Series 4 cutting decks, all equipped with a newly redesigned discharge chute that distributes clippings over a wider area. A choice of twin-cylinder Kawasaki, Kohler, or Vanguard twin-cylinder commercial engines are available, all equipped with heavy-duty external air filters. Power is delivered through unitized Hydro Gear pump and motor units for up to 11 mph forward ground speeds. A new full-suspension operator seat increases operator comfort during long work days.

Specifications:

  • UPC: 193308242187
  • Width / Cutting Deck: 48"
  • Drive: Hydro-Drive
  • Starter: Electric
  • Steering Control: Hydraulically dampened twin levers (adjustable fore/aft and height)
  • Caster Forks: 0.50" thick caster yoke arms
  • Front Caster Tires: 13 x 6.5-6, smooth tread, pneumatic, sealed ball bearings
  • Drive Tires: 24 x 9.5-12, 4-ply Super Turf TL
  • Safety Package: Operator Presence Controls (OPC), drive system interlock, safety interlock indicators
  • Parking Brake: Lever-actuated internal wet disc brake
  • Tractor Frame: Unibody, welded, heavy-duty 1.5" x 3" tubular steel
  • Blade Spindles: No maintenance, sealed, non-greasable; 7.75" cutter housing, 25mm spindle shaft
  • Electrical: 12V battery, 15-amp alternator
  • Standard Features: Engine hour meter, cup holder
  • Seat: Deluxe suspension seat, foam flip-up armrests, fore/aft adjustment, integral safety switch
  • Engine Brand: Kawasaki®
  • Engine Model: FX730V
  • Engine Displacement: 726cc
  • Engine Series: V-Twin
  • Fuel System: Carbureted
  • Speed: Infinitely variable (0–11.0 mph forward, 0–6.0 mph reverse)
  • Engine Speed: 3700 RPM
  • Air Filter: Heavy-duty canister air filtration system
  • Fuel Capacity: 9.5-gallon single fuel tank
  • Drive Description: Dual Hydro-Gear ZT-4400 hydrostatic transmission
  • Fuel Type: Gas (Carbureted)
  • PTO Engagement: MagStop Electromagnetic 175 ft-lb clutch with spot brake
  • Drive Wheel Release: Allows movement without engine running
  • Fuel Indicator: Mechanical float
  • Deck Lift: Foot-controlled, adjusts cutting height (1.5" to 5.5" in 0.25" increments)
  • Carb Compliant: No
  • ROPS: 2-post foldable ROPS with seat belt and latch
  • Deck Style: Floating Deck (UltraCut Series 4)
  • Deck Construction: 10-gauge alloy top, 7-gauge side skirt, reinforced spindle mounts
  • Blade Tip Speed: ~18,500 fpm
  • Blades: 2 blades, 24.50" length
  • Dimensions:
  • Width: 61.2"
  • Height: 70.1"
  • Length: 87.8"
  • Curb Weight: 1017 lbs
