Description:

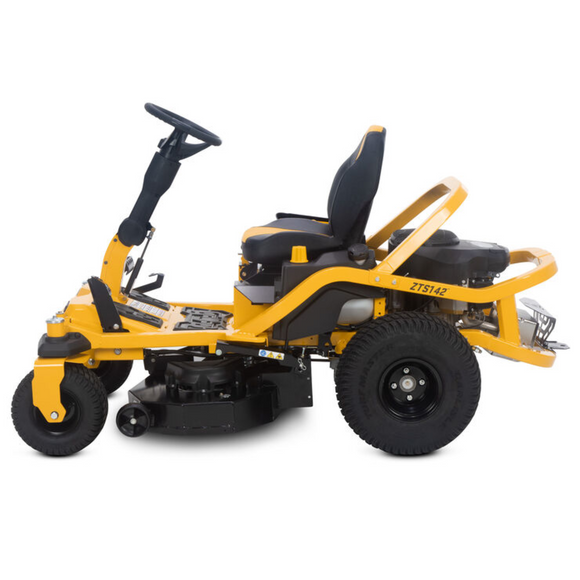

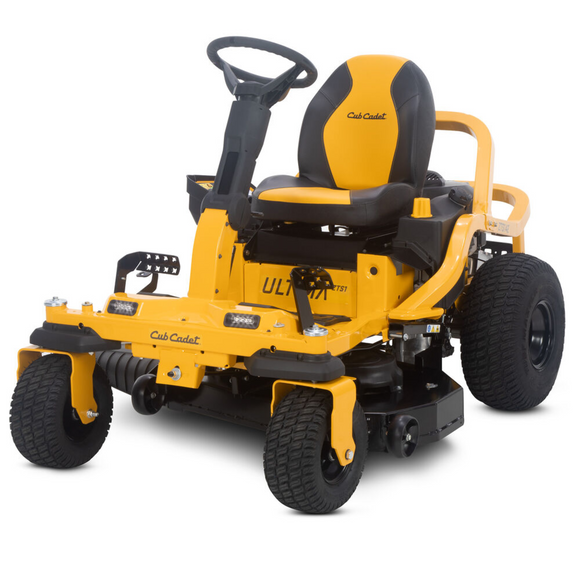

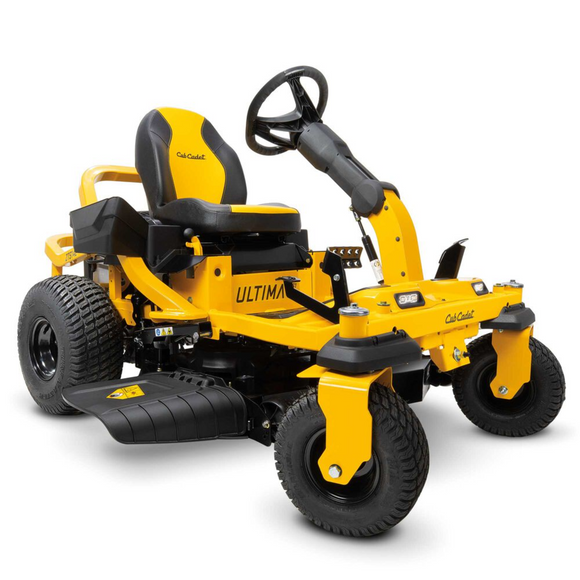

The Cub Cadet® Ultima Series ZTS1 42 is a 42-inch zero-turn lawn mower with a 22 HP engine, featuring an AeroForce™ fabricated deck and Synchro-Steer™ technology. It is designed to provide a high-quality cut with few clumps and an even finish. The Synchro-Steer™ technology offers 4-wheel control, which helps provide stability for straight-line mowing on hills and slopes up to 20 degrees. The mower has dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look.

Features:

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 22 HP*/725cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
• Zero-Turn Mower

Specification:

Engine

• Brand: Kohler®
• Series: 7000 Series
• Model Number: KT722
• Displacement: 747cc
• Power Output: 22 HP
• Cylinders: Twin
• Start Type: Electric (Ignition Key)
• Fuel Type: Gasoline
• Fuel Delivery: Carburetor
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual Element
• Oil Filter: Yes
• Lubrication: Fully Pressurized
• Oil Capacity: 2.0 qt (1.89 L)
• Charging System: 12 Amp Regulated
• Fuel Tank Capacity: 3.5 gal. (13.25 L)
• Fuel Gauge: No

Battery

• Voltage: 12V
• Type: AGM (Absorbent Glass Mat)
• CCA: 210

Drive System

• Transmission: Hydro-Gear EZT 2200
• Type: Hydrostatic
• Forward Speed: Up to 7 MPH (11.3 km/h)
• Reverse Speed: Up to 3.5 MPH (5.6 km/h)

Tires

• Front Tires: 13" x 6.5" - 6"
• Rear Tires: 20" x 8" - 8"
• Tread: Turf Master / Multi Trac

Cutting Deck

• Cutting Width: 42 in
• Deck Construction: Fabricated
• Material: 11-gauge steel
• Blades: 2
• Engagement: Electric PTO
• Cutting Height Range: 1" – 4.5"
• Deck Lift: Foot Pedal with Dial Adjust
• Anti-Scalping Wheels: 2
• Deck Wash Port: No
• Height Positions: 15

Chassis

• Frame: 2" x 2" Tubular Steel
• Turning Radius: 0° (True Zero-Turn)
• Corrosion Protection: Yes
• ROPS: No
• Rear Tow Hitch: Yes

Comfort & Controls

• Steering: Steering Wheel
• Seat Type: 20" High-Back
• Armrests: No
• Seat Adjustment: Lever
• Caster Suspension: None
• Brakes: Disc
• Cruise Control: No
• Cup Holder: Yes
• Parking Brake: Hand Lever
• Model Number
• 17ARGBYEA10

Additional Features

• Headlights: Dual-LED
• Hour Meter: Available Separately
• Mulch Kit: Available Separately
• Operator Presence System: Yes

Warranty

• Residential Warranty: 3-Year Unlimited Hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: Not Applicable
