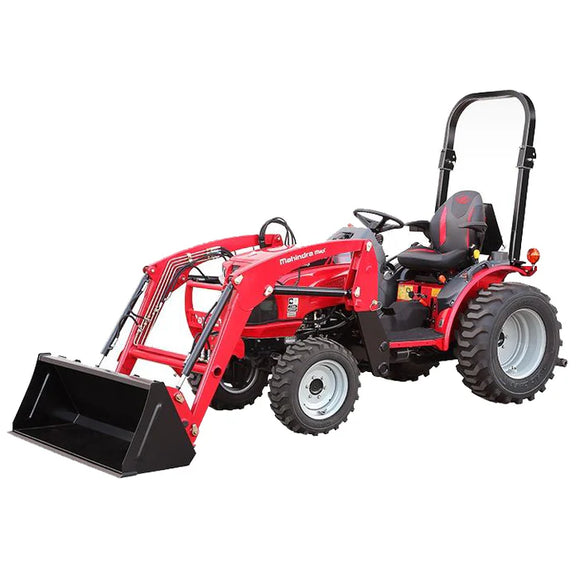

2126 Mahindra 4WD ROPS HST, Loader

$21,354.00 $24,350.00 Save $2,996

Shipping calculated at checkout

Mahindra

Serial Number: MBNMFL6DKRZC00734

Specifciations

ENGINE:
Type: Naturally aspirated, water cooled, indirect injection diesel
Engine HP [kW] @ RPM: 24.7 (18.4) @ 2500
Maximum Torque (in-lbs) @ RPM: 566 (64) @ 2000
Displacement (in3): 80.4
Number of Cylinders: 3
Firing Order: 1-3-2
Bore & Stroke (in): 3.1 x 3.6
Compression Ratio: 22:1
Low Idle RPM: 1030
High Idle RPM: 2700
Injection Pump: Denso in-line
Accelerator : Hand throttle lever w/cruise knob
Muffler: Under hood
Air Cleaner: 4" dry
Fuel: ULSD
Fuel Tank gal (L): 9.3 (35)

POWER TAKE OFF:
Independent wet clutch
PTO Operation: Push button
Rear PTO RPM: 540
Mid PTO RPM: 2500
PTO HP [kW]: 17 (10.4)

DASH INSTRUMENTS:

SAFETY EQUIPMENT:
DRIVE TRAIN:
Transmission: HST three range
Number of Speeds: Infinite
Clutch: N/A
Brakes: Single

HYDRAULICS:
Type: Open center
Steering Pump Output gpm (L/min): 5 (19)
Implement Pump Output gpm (L/min): 6.3 (23.8)
3-Point Hitch: Cat I with telescoping stabilizers
Optional Fitments: One

OPERATOR STATION:

FRONT AXLE:
ELECTRICAL:
Battery: 630 CCA, 52 Ah
Alternator: 55 A
Starter Capacity: 1.6 kW
Lights: Projector lamp & LED strip
Gauges: Electronic hour meter, stepper gauge for RPM, LCD for temp & fuel

DIMENSIONS:
Tilt Steering: Yes
Overall Length in (mm): 112.7 (2863)
Overall Width in (mm): 54.4 (1383)
Overall Height in (mm): 93.6 (2377
Wheelbase in (mm): 61.4 (1560)
Turning Radius ft (m): 7.5 (2.3)
Turning Radius without Brakes ft (m): 8.5 (2.6)
Weight lb (kg): 2101 (955)

WHEELS & TIRES:
IND [Front/Rear]: 8.5x14 / 12.4x16

CAPACITIES:

Sold Out
